Microservice Architecture and Service Integration

Overview

This document outlines the new Queue Service architecture implementation, focusing on offloading actions from HB (Host Bridge) and facilitating future migration any services.

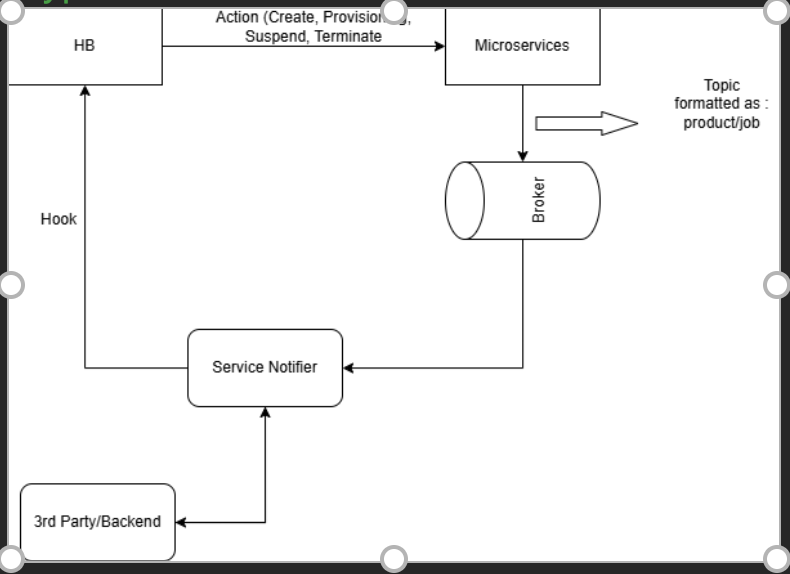

System Architecture

General Flow

HB -> Queue Service -> Broker -> Service Notifier -> HB

Component Details

1. Host Bridge (HB)

  • Initiates create commands to Queue Service
  • Receives webhook notifications for service completion
  • Handles error notifications for further investigation

2. Queue Service

  • Processes create commands from HB
  • Transmits required information to Broker
  • Manages service-specific operations

3. Message Broker

  • Handles topic-based message routing
  • Topic format: service/topic
  • Example: neo-wp/create-neo-wp
  • Manages action execution

4. Service Notifier

Responsibilities:

  • Performs third-party service status checks
  • Executes jobs across different services
  • Contains service-specific modules
  • Sends completion webhooks to HB

Operations:

  • Status verification
  • Service activation checks
  • Webhook management

Data Flow

Normal Flow

  1. HB initiates create command
  2. Queue Service processes and forwards to Broker
  3. Broker routes to appropriate service
  4. Service Notifier performs checks
  5. Webhook sent to HB with completion status
  6. Payload returned matches initial create payload

Error Handling

  • Direct error notification to HB for:
  • Third-party service failures
  • Integration issues
  • Service-specific errors

Implementation Notes

  • Each service requires specific notification modules
  • Service activation verification varies by service type
  • Payload requirements differ based on service specifications

Future Considerations

  • Scalability for additional services
  • Odoo migration compatibility
  • Service-specific customizations

Initial Implementation

Queue message service will serve as the first service to implement this architecture, serving as a model for future service integrations.

Standardize Modules Functions

Template modules should be define on modules folder with spesific name microservice : 'modules/'

example template file :

'modules/app_platform.py'
'modules/neo_lite.py'
'modules/neo_metal.py'

Example implementations : script code : modules/counter.py

import requests


def multiply(number: str):
    return 2 * int(number)

def count_words_at_url(url: str):
    """Just an example function that's called async."""
    print("module loaded")
    resp = requests.get(url)
    print(resp.text)
    return len(resp.text.split())

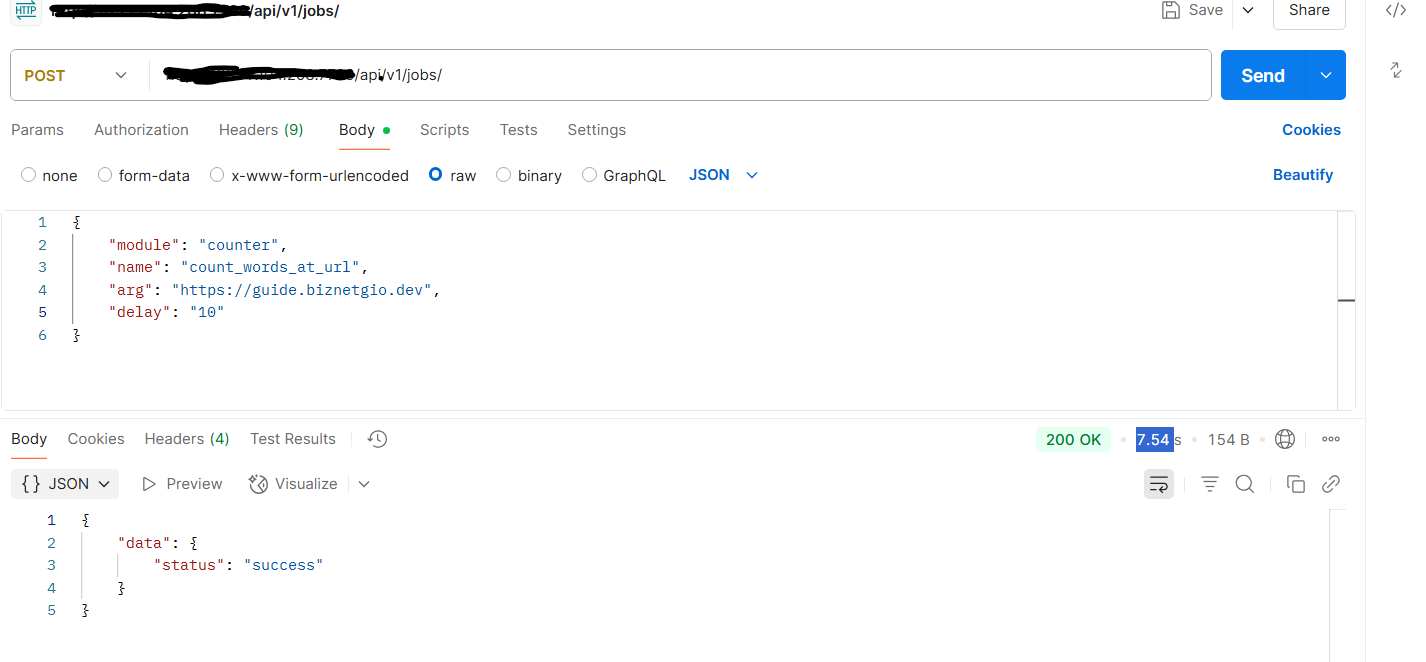

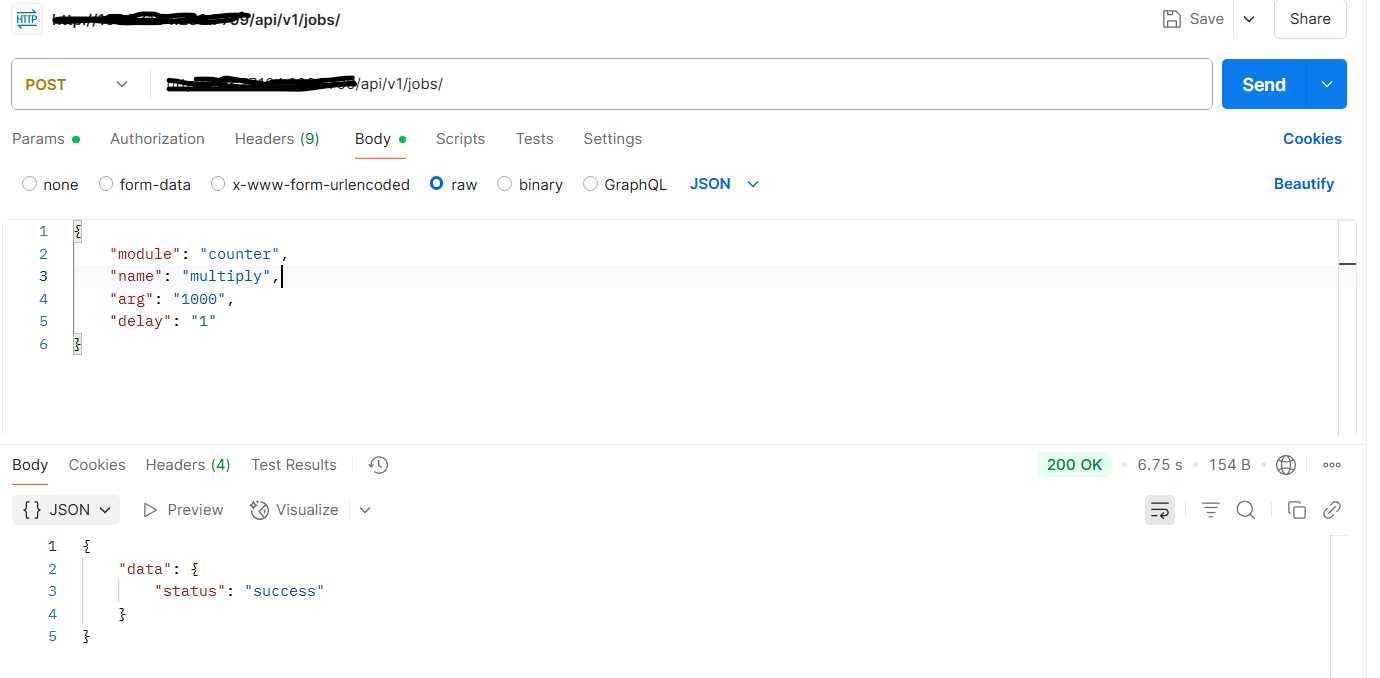

APis request and response output :

multiply

count_words_at_url

Webhook Mechanism to Host Bridge

This standardize from queue service to HB (Host Bridge) process.

{
data : // return data from worker,
payload : // payload data request to ms
}
